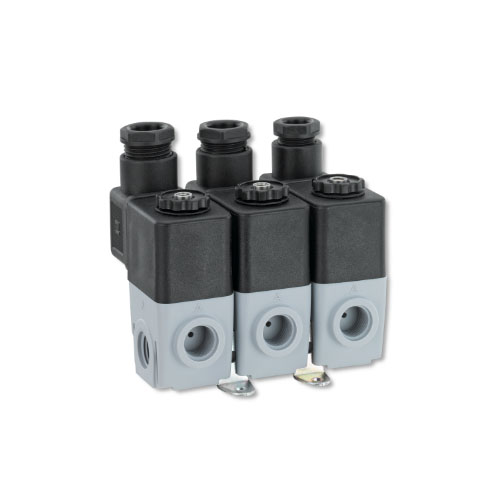

Gemü 88322097 0322 2M 174 41C1010210 3/2-way plastic pilot valve
| Item number: | 88322097 | |
| description |
| Type | 0322 | Pilot solenoid valve, direct operated, single assembly/batch assembly |
| DN | 2 | DN 2 |
| case shape | M | Multi-way execution |
| connection type | 1 | Threaded socket DIN ISO 228 |
| Valve body/solenoid material | 74 | PA, polyamide |
| sealing material | 4 | FPM |
| control function | 1 | normally closed (NC) |
| Voltage frequency | C1 | 24VDC |
| Electrical connection | 01 | Device plug type A, can be assembled with mating socket |
| option | 02 | Manual emergency actuation (only control function 1, normally closed) |
| Maximum operating pressure | 10 | 10 bars |
Açıklama
| Item number: | 88322097 | |
| description |
| Type | 0322 | Pilot solenoid valve, direct operated, single assembly/batch assembly |
| DN | 2 | DN 2 |
| case shape | M | Multi-way execution |
| connection type | 1 | Threaded socket DIN ISO 228 |
| Valve body/solenoid material | 74 | PA, polyamide |
| sealing material | 4 | FPM |
| control function | 1 | normally closed (NC) |
| Voltage frequency | C1 | 24VDC |
| Electrical connection | 01 | Device plug type A, can be assembled with mating socket |
| option | 02 | Manual emergency actuation (only control function 1, normally closed) |
| Maximum operating pressure | 10 | 10 barsDatenblatt-db_0322_de |
